What is Internal Gear Pump - BJVP Internal Gear Pump
Overview:
Internal Gear Pumps differ from external gear pump in the
arrangement of gears. An internal gear pump also consists of 2
gears, but one of the gear is internal gear and the other is
commonly used spur gear. Both the gear rotates in the same
direction.
BJVP has more than two decade of experience and continuous
improvement the VP gear pump ,it performs satisfactory and
extremely stable.VP internal gear pump can be widely used to
transfer all kinds of fluid ,especially large viscosity range
medium, high temperature or high viscosity ,low NPSH chemicals.
Application:
Lubricants, Fuel Oil, Grease, Asphalt, Bitumen,
Gluse,Polymer,Resin,Chemical Fiber, Coatings, Detergents, High
viscosity product or high temperature product.
Parameters:
| Port size | 0.5”-10” |
| Capacity | 0.01～363 m3/h |
| Pressure range | 0.1～16 Bar |
| Temperature | -85～430℃ |
| Viscosity | 0.1～440, 000 cSt |
| Material | D.I ,WCB,304SS,316SS,316L,Duplex SS |
| Port Type | ASME or DIN Flanges ,NPT ,SAE ports |
Character:
Adjustable clearance, easy satisfied with the changable viscosity
;Enlarged seal chamber for multi type seal interchange ; Enlarged
bearing housing for quickly maintenance.
Available Solution:
Packing seal,Mechanical Seal,Cartridge type seal , all kinds of
seal types are interchangeable, enlarged bearing housing design for
future replacement and quickly maintenance.
Magnetic None Seal pump is also available.
Internal Safety valve , heating jacket,electric heating rod can be
supplied.
BJVP can provide a variety of material selection,working scope to
meet with application requirement.

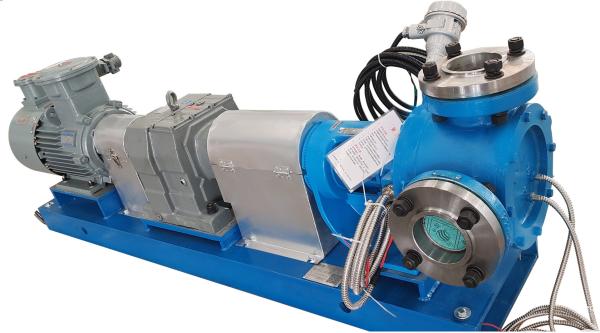

Picture:
