    White Twin Lobe Pump NPT SAE Two Lobe Rotary Pump 2.6m3/H Flowmeter

    R0150P - 2.6m3/h Flowmeter - BJVP Rotary Lobe Pump


    Overview:


    Rotary Lobe Pump is a positive displacement pump, which has two rotors in the pump head. The two rotors fixed on two shafts and rotate syn-chronically in counter direction. The rotation creates vacuum volume on the inlet side. The liquid is sucked into the pump head and travels around in the chamber between the rotor and the pump head casing, and is forced out on the outlet side.


    Parameters:


    Port size1.5”-8”
    Capacity0.01~238 m3/h
    Pressure range0.1~31 Bar
    Temperature-20~180℃
    Viscosity0.1~1,000,000 cSt
    MaterialD.I ,WCB,304SS,316SS,316L,Duplex SS
    Port TypeASME or DIN Flanges , NPT ,SAE ,Tri-clamps,SMS

    Application:


    Chemicals,dairy products, non-staple food processing, condiments, cosmetics, automotive paint, ink and other industrial applications.


    Character:


    Exquisite design and advanced quality control, VP lobe pump has strong reliability and applicability.


    The mechanical seal can be removed from the front;Easy maintenance and high efficient repair.Rotor without dead angle is infrequent to be stuck, suitable for all kinds of abbrasive,low viscosity or high viscosity application.


    Anti-shearing, Large liquid cavity, smooth transport, can be clean-in-place, easy to maintenance. VP lobe pump is suitable for chemicals, food and beverage and pharmaceutical industry. Multi-options for contact materials. The ports can be installed vertically or horizontally.

    Available Solution:


    Radial double seal design,can enlarge the seal life for any serious application.


    Jacket is available for high temperature request.

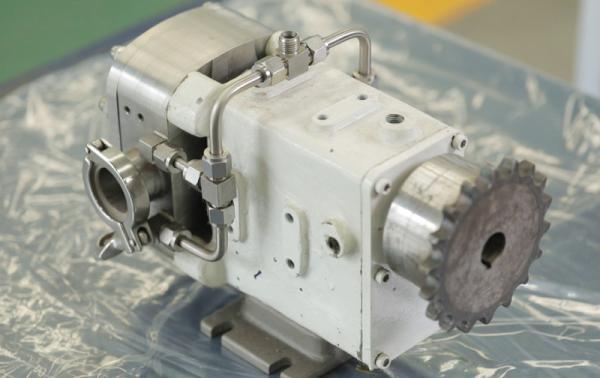

    Picture:

    Quality White Twin Lobe Pump NPT SAE Two Lobe Rotary Pump 2.6m3/H Flowmeter for sale
