    NPT SAE Asphalt Gear Pumps For High Viscosity Fluids High Efficiency

    Ask Lasest Price
    Brand Name : Beijing VP
    Model Number : Customized according to demand
    Certification : ISO Certificate; 3A Certificate
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    NPT SAE Asphalt Gear Pumps For High Viscosity Fluids High Efficiency

    UY-250CSS - Typical Applications - BJVP Internal Gear Pump


    Overview:


    Internal Gear pumps are one of the most common pump types for the handling of clean oil and other self-lubricating, high viscosity liquids such as paints and soaps in relatively high pressure installations. Thanks to their tight internal clearances and positive displacement operation, external gear pumps in particular benefit from a more reliable measure of the fluid that has passed through, making them ideal for batching applications. Internal gear pumps are able to handle high temperature fluids such as thermal oil, and can be supplied with an external jacket to maintain the temperature level.


    Application:


    Lubricants, Fuel Oil, Grease, Asphalt, Bitumen, Gluse,Polymer,Resin,Chemical Fiber, Coatings, Detergents, High viscosity product or high temperature product.


    Parameters:


    Port size0.5”-10”
    Capacity0.01~363 m3/h
    Pressure range0.1~16 Bar
    Temperature-85~430℃
    Viscosity0.1~440, 000 cSt
    MaterialD.I ,WCB,304SS,316SS,316L,Duplex SS
    Port TypeASME or DIN Flanges ,NPT ,SAE ports

    Character:


    Adjustable clearance, easy satisfied with the changable viscosity ;Enlarged seal chamber for multi type seal interchange ; Enlarged bearing housing for quickly maintenance.

    Available Solution:

    Packing seal,Mechanical Seal,Cartridge type seal , all kinds of seal types are interchangeable, enlarged bearing housing design for future replacement and quickly maintenance.

    Magnetic None Seal pump is also available.


    Internal Safety valve , heating jacket,electric heating rod can be supplied.


    BJVP can provide a variety of material selection,working scope to meet with application requirement.

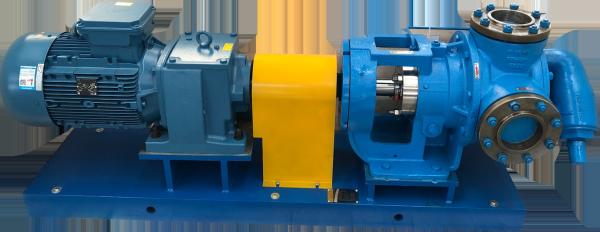

    Picture:

    Quality NPT SAE Asphalt Gear Pumps For High Viscosity Fluids High Efficiency for sale
