High Viscosity, Automatic, Patented - VP Drum Decanting Unit - BJVP
200L Barrel, Full Automatic - VP Drum Decanting Unit - BJVP
Overview :

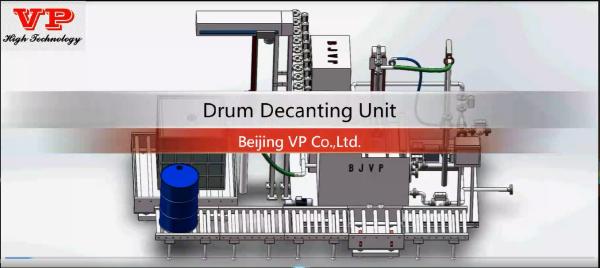

BJVP Drum Decanting Unit (DDU) is usd in lube oil blending plants
for decanting and precise dosing of high quality additive
components from drums or containers.
The unit is supplied as a pre-assembled skid unit, consisting of
adecanting lance, roller conveyor, loading platform, rinsing tank
,pumps and interconnection process pipe work. Compare to other type
of DDU, BJVP DDU can realise full time in automatic mode, less than
6 min/drum. And we offer 1 year warranty.
*BJVP has the patent of VP Drum Decanting Unit.
Parameters :
| Standard barrel capacity | 200L barrel/IBC |
| Empty bucket residual amount | less than 0.5kg after rinsing 200L drum |
| Unloading speed | 6-10 m3/h |
| Full time in automatic mode | less than 6 min/drum |
| System pressure | 16bar |
| Temperature range | 40℃~130℃ |
| Viscosity range | Up to 2,000 cps |
| Lance | Bottom Valve, 3 level for decanting/rinsing/close. Lance can trace liquid level automatically. |
| Control system | DDU can operate from the HMI and communicate with the DCS |
| Field display | Input parameters, real-time display of weight of rinsing tank and
additives, alarm indicator, emergency stop button |
| Rinsing oil tank | with heating jacket and insulation |
| Gross weight | about 2550 kg |
Advantages :
- Exact, reliable and reproducible dosing of additives into the
production process
- Saving additives by emptying the drums completely
- No waste oil in the production process
- No cross - contamination by cleaning the drum and lance by hot
rinse oil
Main Functions :
- Decanting additive drums
- Rinsing drums
- Rinsing lance
- Emptying rinsing tank
- Air purging
Applications :
- Petrochemical
- Refinery
- Lubricant Oil
- Additives
- Inks
- Sanitary industry
- Pharmaceutical industry
Our Factory :
F&Q :
Q1: What can DDU do in process transporation?
A: BJVP Drum Decanting Unit (DDU) System can deant, rinse, weigh at
the end of the decating, lance can trace the liquid level.
Q2: What is VP Drum Decanting Unit?
A: VP Drum Decanting Units are a mechanized and automated tools to add
small volume additives into a blender. They are equipped with
conveyor belts, a drum weighing platform scale, a concentric lance
to both withdraw additive and rinse empty drums and a weighed,
heated, rinse tank to provide rinsing stock for the drums to the
blending kettles. By automating dosing, rinsing, and transferring
you can increase efficiency and safety with our Drum Decanting
Units.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in petrochemical,
lubricant oil, additives, pharmaceutical industry and other
industry applications.
